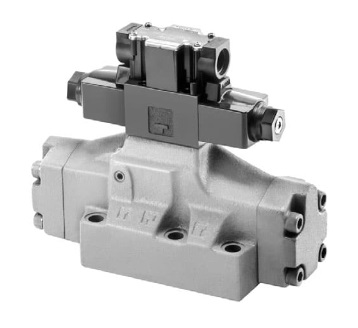

DSHG Series Solenoid Controlled Pilot Operated Directional Valves
Solenoid Controlled Pilot Operated Directional Valves. These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.
DSHG Series
Solenoid Controlled Pilot Operated Directional Valves
Solenoid Controlled Pilot Operated Directional Valves.
These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.
