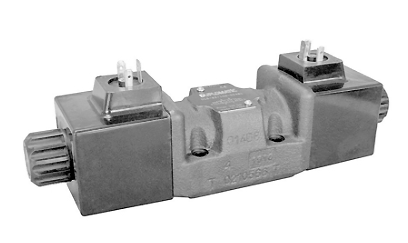

DL5 are solenoid operated directional control valves designed for agricultural machinery in compact version, for subplate mounting.
They control passage and direction of a flow. They are available with 3-ports and 4-ports design with spring return or with mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the pressure drops. Wet armature solenoids with interchangeable coils are used. The valve is available with DC or AC current solenoids.
DL5 valves range also includes versions with zinc – nickel finishing in order to improve corrosion resistance.
DESCRIPTION
DL5 are solenoid operated directional control valves designed for agricultural machinery in compact version, for subplate mounting.
They control passage and direction of a flow. They are available with 3-ports and 4-ports design with spring return or with mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the pressure drops. Wet armature solenoids with interchangeable coils are used. The valve is available with DC or AC current solenoids.
DL5 valves range also includes versions with zinc – nickel finishing in order to improve corrosion resistance.
