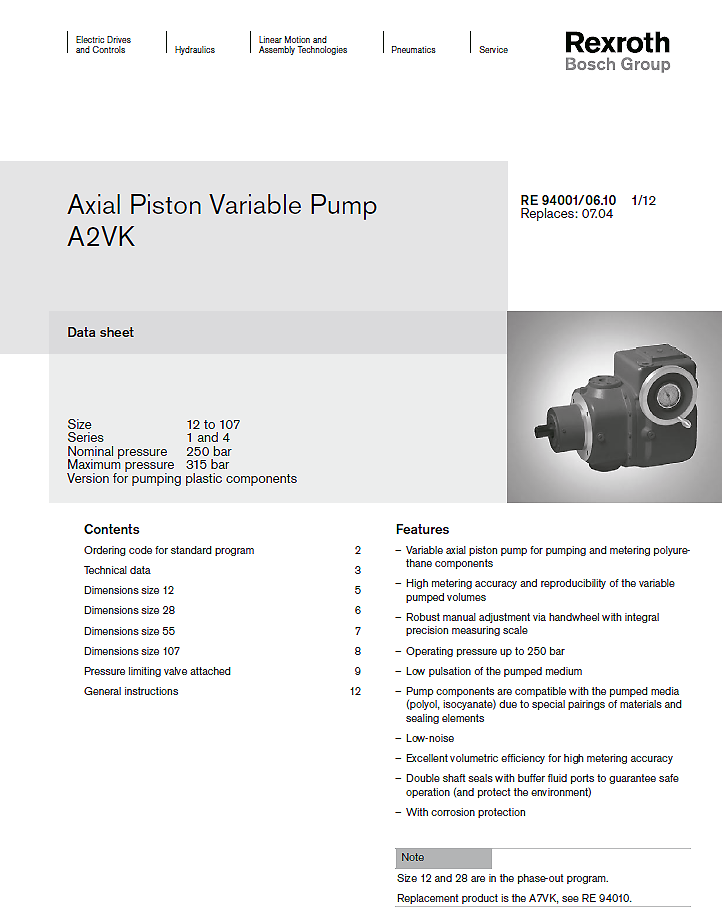

A10VOA2VK

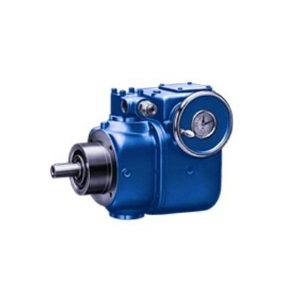

BOSCH REXROTH VARIABLE DISPLACEMENT PUMPS A2VK

• Series 1 and 4
• Size 12...107
• Nominal pressure 250 bar
• Peak pressure 315 bar
• Version for the transportation of plastic components

Features

• Variable axial piston pump for pumping and metering polyurethane components
• High metering accuracy and reproducibility of the variable pumped volumes
• Robust manual adjustment via handwheel with integral precision measuring scale
• Operating pressure up to 250 bar
• Low pulsation of the pumped medium
• Pump components are compatible with the pumped media (polyol, isocyanate) due to special pairings of materials and sealing elements
• Low-noise
• Excellent volumetric efficiency for high metering accuracy
• Double shaft seals with buffer fluid ports to guarantee safe operation (and protect the environment)
