A2FA4CSG

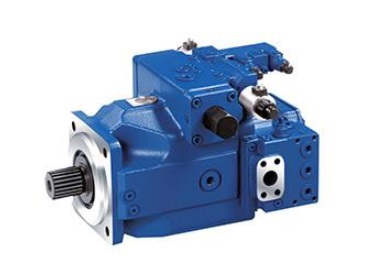

Axial Piston Compact Unit - A4CSG

Features

• Axial piston pump-variable displacement, swash plate design for hydrostatic drives in closed circuits.
• The flow is proportional to input speed and displacement. It can be infinitely varied by adjustment of the swash plate.
• Compact design (extremely small in length)
• Low noise level
• Long service life
• High efficiency
• New electro-hydraulic control EP with proportional solenoid and zero displacement position at power loss
• Through drive for multiple pump combinations also possible with integrated boost pump
