A10VOA4VBO

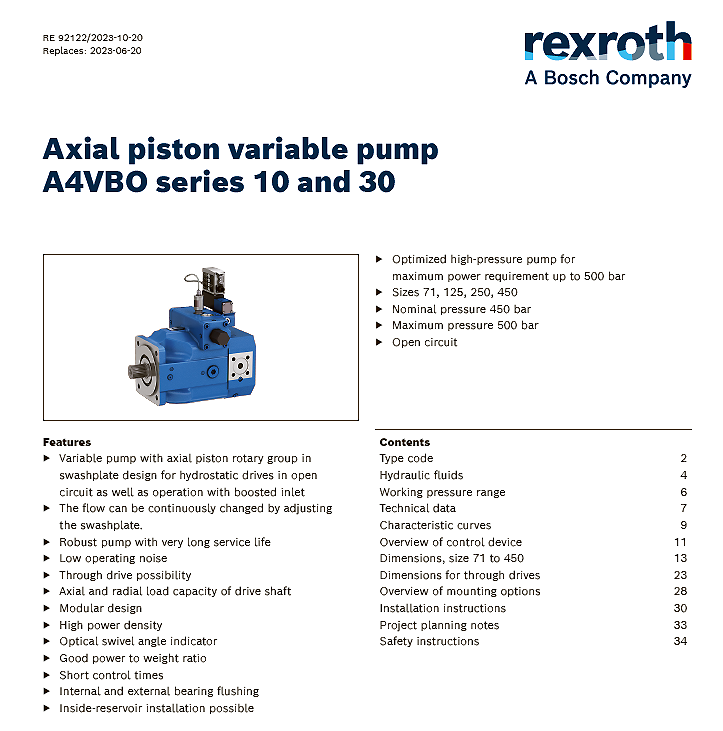

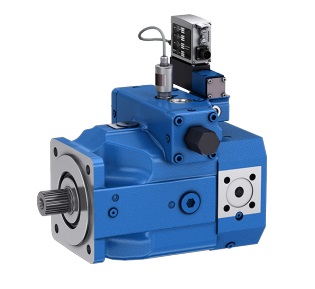

Axial piston variable pump A4VBO series 10 and 30

Features

• Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit as well as operation with boosted inlet
• The flow can be continuously changed by adjusting the swashplate.
• Robust pump with very long service life
• Low operating noise
• Through drive possibility
• Axial and radial load capacity of drive shaft
• Modular design
• High power density
• Optical swivel angle indicator
• Good power to weight ratio
• Short control times
• Internal and external bearing flushing
• Inside-reservoir installation possible
• Optimized high-pressure pump for maximum power requirement up to 500 bar
• Sizes 71, 125, 250, 450
• Nominal pressure 450 bar
• Maximum pressure 500 bar
• Open circuit
