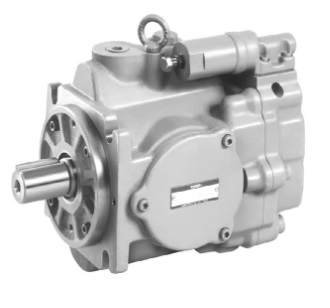

A3H Series Variable Displacement Piston Pumps

New pump series for the industrial and mobile markets. Features a load sense compensator, 4000 PSI rating, and higher shaft speeds.

• Variable displacement piston pumps offer high pressure, high performance in a simple and compact package.

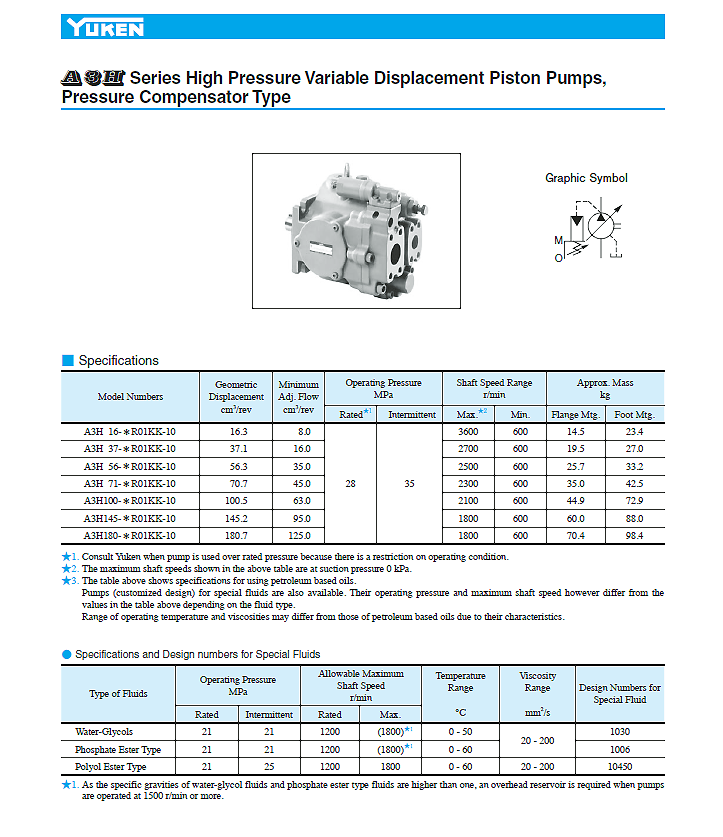

  High Pressure: 35 MPa (5080 PSI)
• High volumetric efficiency
• These pumps maintain a high volumetric efficiency, even at a pressure of 35 MPa (5080 PSI).
• Available in a wide range of displacements

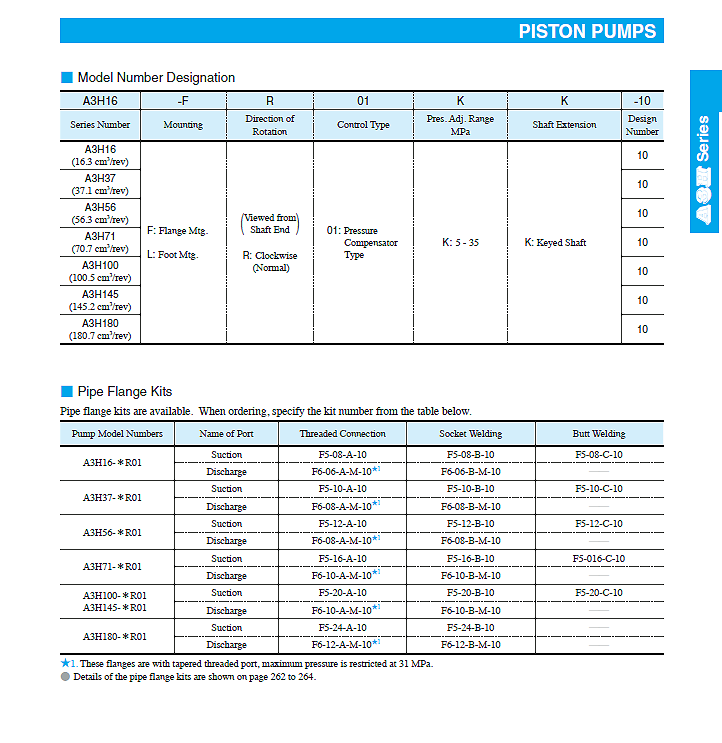

• Seven models are available in displacements ranging of 16.3 to 180.7 cm3/rev (.995 to 11.03 cu. in./rev).
